Architecture Overview

qwen-audio-agent connects realtime conversation with asynchronous execution. Its logical components and service deployment describe different aspects of the architecture.

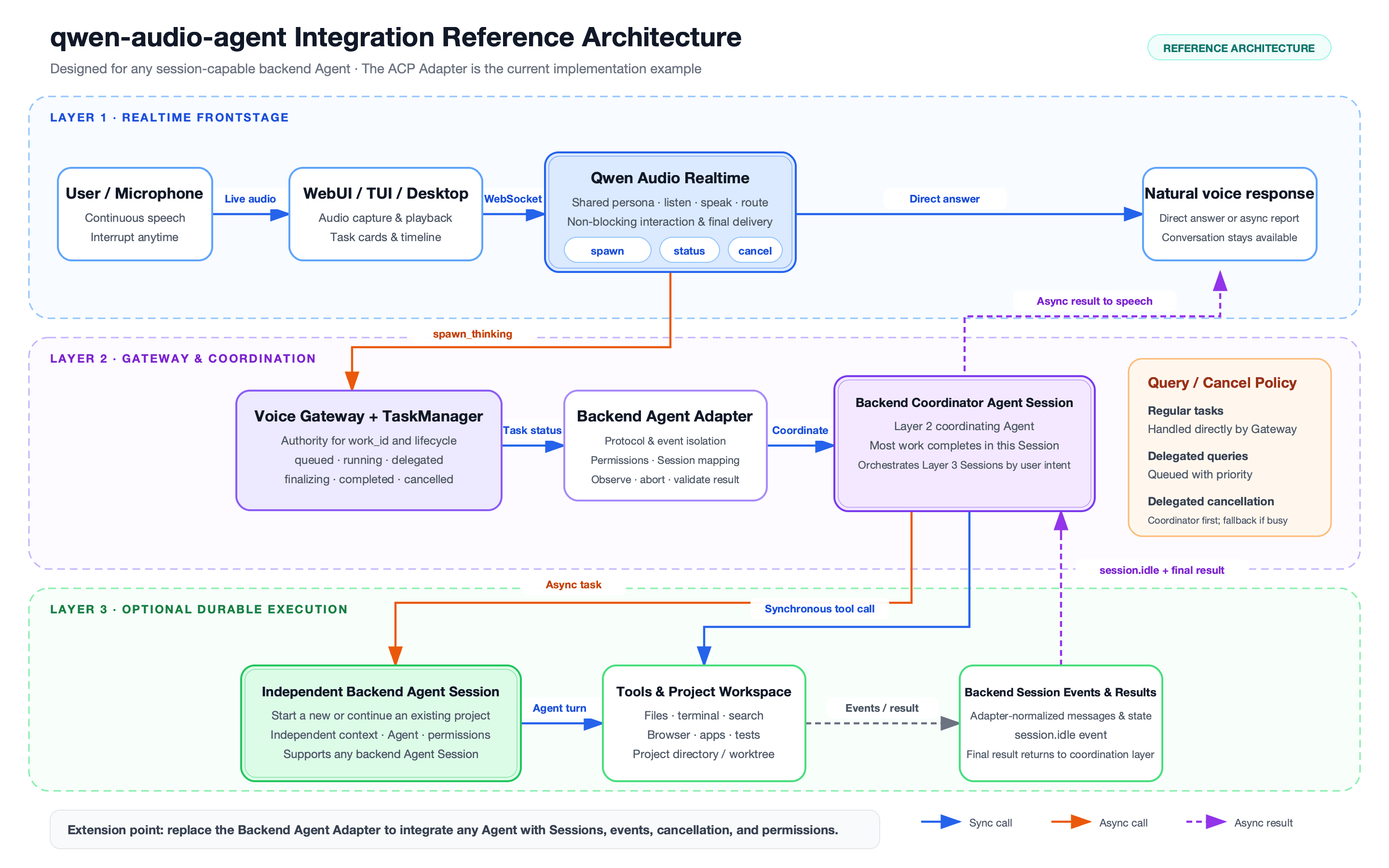

Core logical architecture

Component	Responsibility	Boundary
Frontend Agent	Understand input, converse naturally, call chat tools or spawn_thinking, and compose responses from results.	Combines a realtime model, instructions, context, and tools; does not handle backend-native protocols or execution details.
Orchestration Runtime	Manage task lifecycles, permissions, sessions, events, and result delivery so work and conversation can proceed together.	Runs scheduling and policy in code, without adding a coordinating model or choosing the backend's internal execution steps.
Backend Agent	Work in its own execution environment with its own model, tools, MCP servers, and Skills.	Connects through BackendPort; ACP, A2A, or custom protocol details stay inside the adapter.

These are three logical components, not three required processes. Backend sub-agents and independent Sessions do not add core architecture layers.

Gateway and clients

The Gateway is the framework's service host. It assembles the Orchestration Runtime and frontend/backend integrations, and provides listening endpoints, authentication, connection management, and protocol entry points. The runtime describes how the system works; the Gateway describes how those capabilities are served. The Gateway is not itself a protocol: clients use the Gateway Client Protocol.

A client is an interaction and environment endpoint, not the Frontend Agent. Desktop, WebUI, TUI, mobile, and custom clients own I/O, presentation, user actions, and environment events. Wake words, hotkeys, windows, and local devices belong to clients; long-term memory belongs to the memory module integrated with the runtime.

Desktop can start its bundled Gateway or, like mobile, WebUI, and TUI, connect to a separately deployed Gateway. The backend can be a managed local process or an external service supported by its adapter. These deployment choices do not change the core component responsibilities.

Interface boundaries

• Client ↔ Gateway — the Gateway contract and the client protocol: typed events over a single WebSocket by default. Optional WebRTC transport reuses Gateway control and lifecycle behavior.
• Orchestration Runtime ↔ Backend — the BackendPort. Protocol details stay inside ACP, A2A, or custom adapters; launch and capability behavior lives in registered drivers. See Supported backends and the Backend Adapter SDK.
• Runtime ↔ realtime model service — the Realtime Provider. Independent adapters handle vendor protocols, authentication, and event conversion without changing task or client semantics.

The framework also exposes persona, announcement policy, frontend MCP/OpenAPI tools, and knowledge/memory providers. Product hosts assemble these through the existing application entry point; clients connect through the Gateway. See Extensions and Examples.

Runtime and Session terminology

• Orchestration Runtime is a logical framework component. Its responsibilities currently span task/, orchestration/, voice/, and other modules assembled by app/. It is neither a single class of that name nor just the orchestration/ directory.
• A frontend session runtime manages one realtime conversation's model connection, context, tools, and presentation. It is part of the runtime implementation.
• A backend coordination Session is persistent execution context used by the ACP adapter, not the Orchestration Runtime. A2A and custom backends need not use this Session structure.

The nonblocking loop

When a request needs backend execution, the frontend calls spawn_thinking. The Orchestration Runtime acknowledges acceptance so conversation can continue. The configured backend executes asynchronously, and results return to the same conversation at a safe insertion point. Backend execution does not block conversation; permissions and results are presented according to the current interaction state.

Read next

• Deep dive — the product-boundary invariants: realtime tool surface, session ownership, work states, result delivery, process ownership, and the review checklist.
